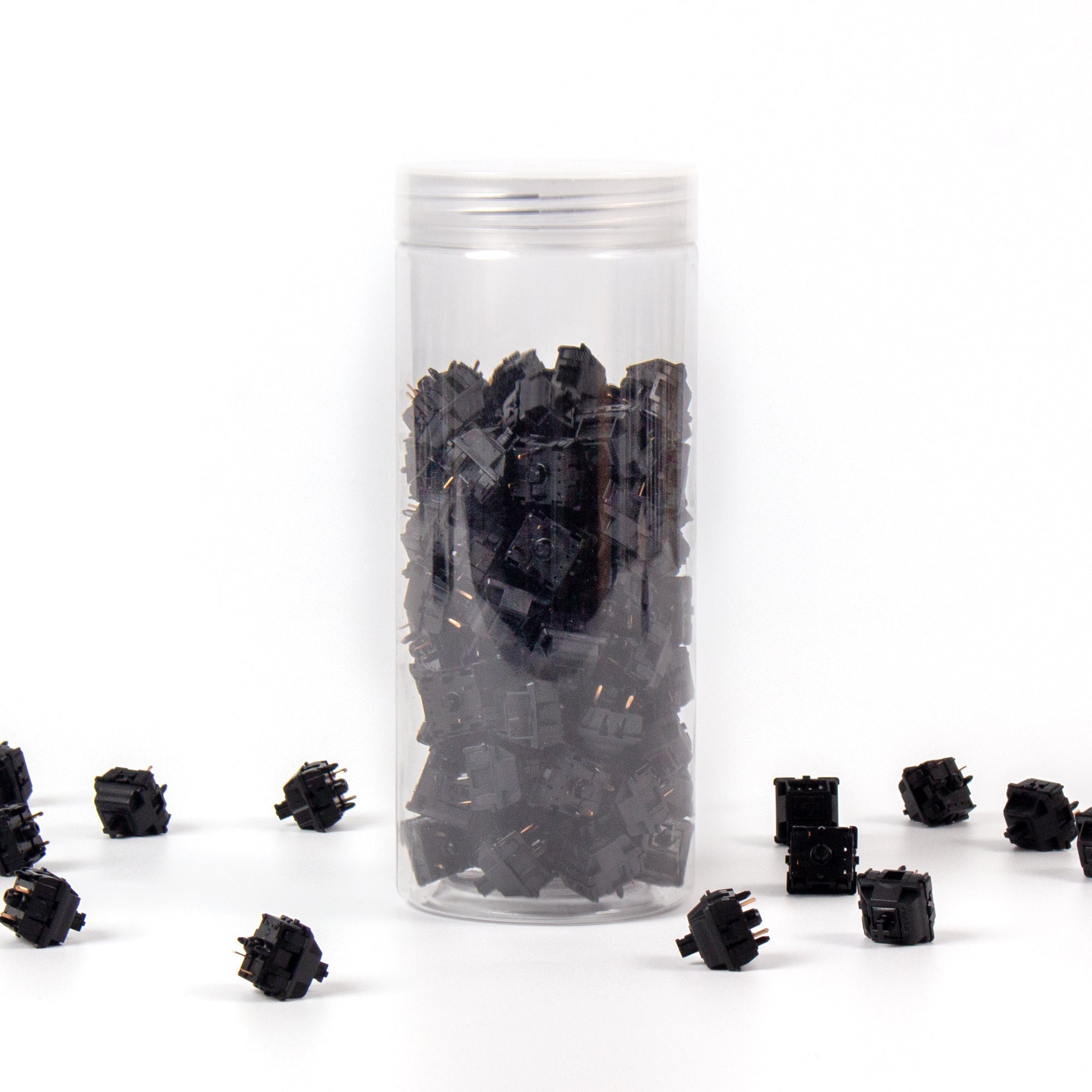

Gateron Oil King Linear Switch Set

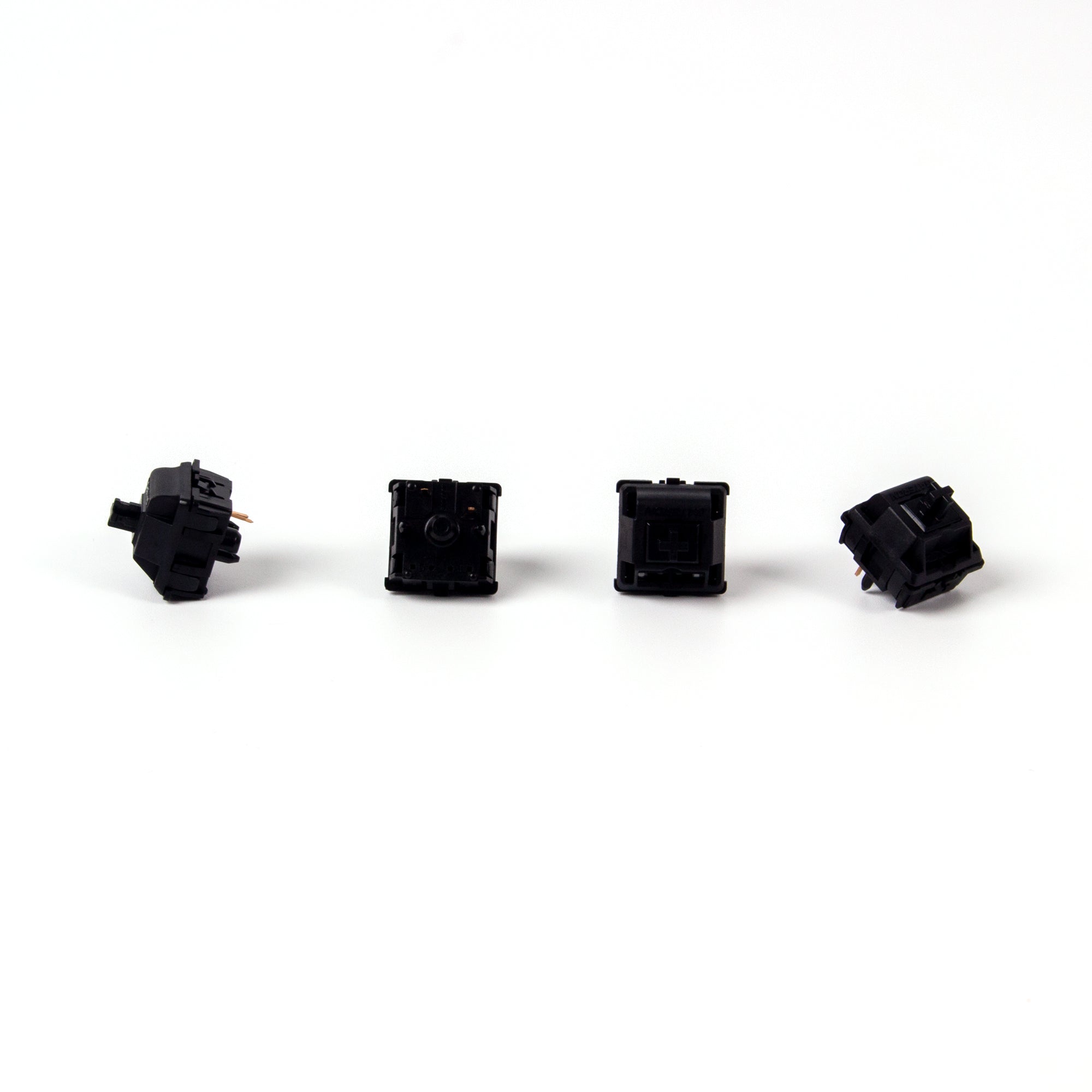

Gateron Oil King Linear Switch

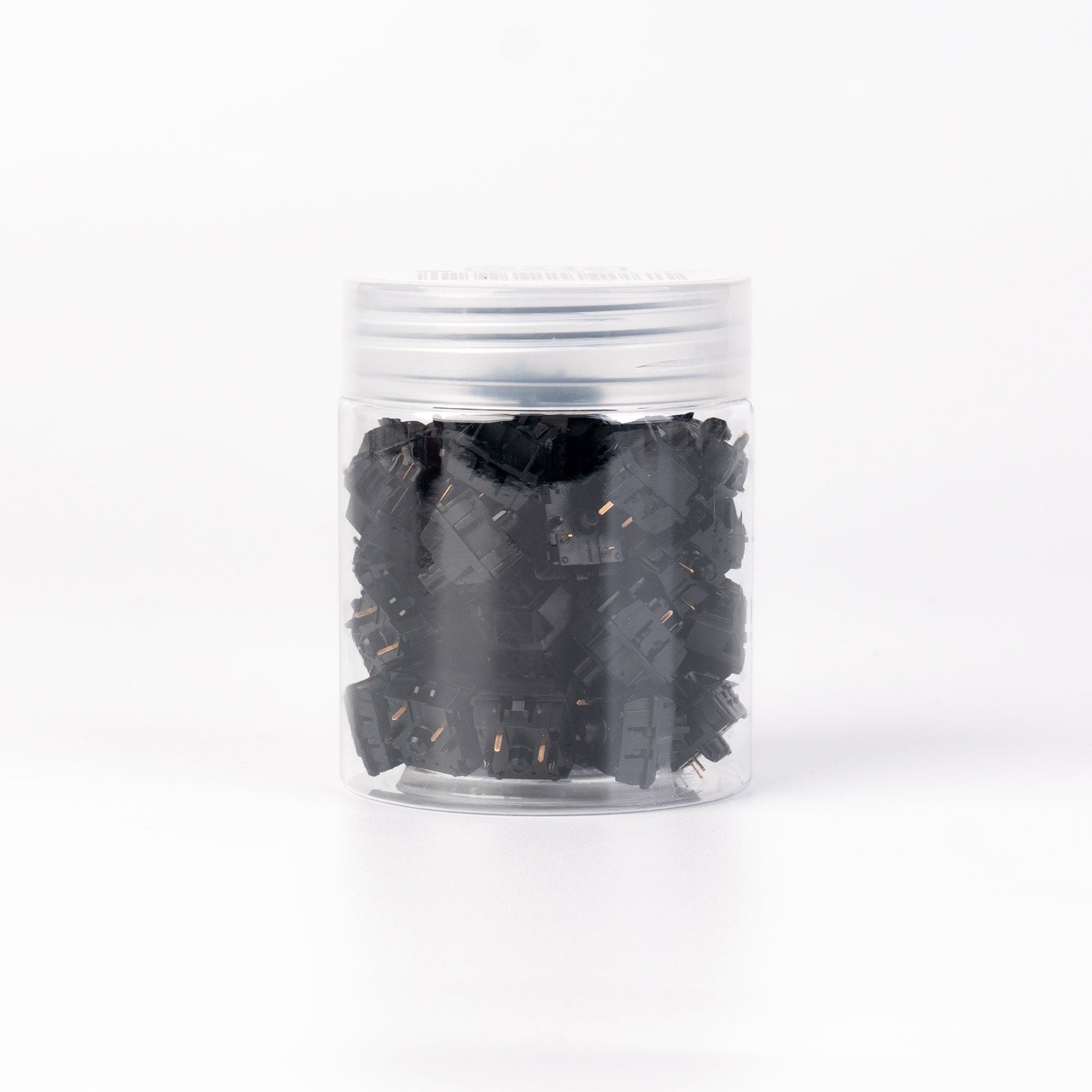

Gateron Oil King Linear Switch Set

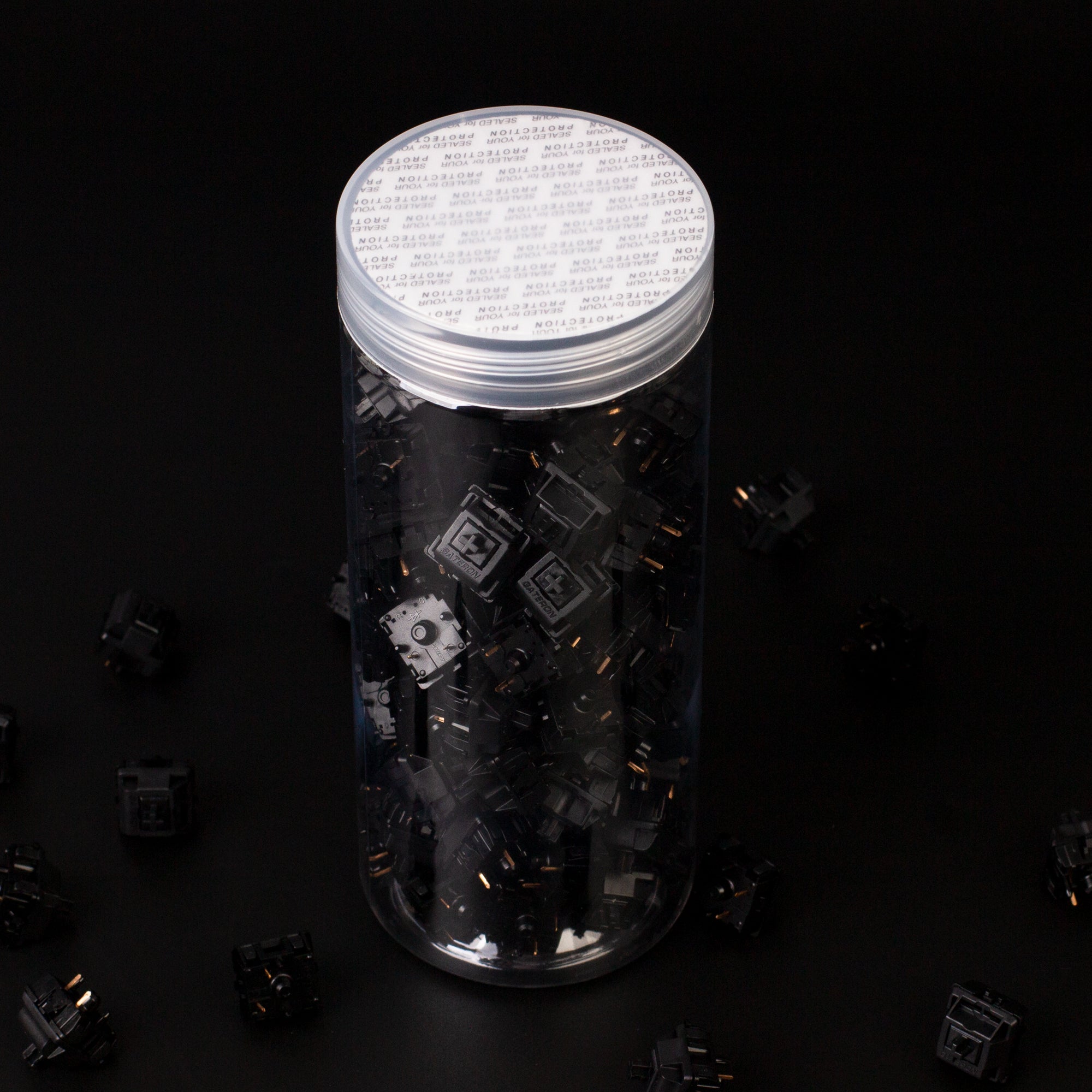

Gateron Oil King Linear Switch Set

Sale price$72.00
Option:Oil King
Quantity of one set:110 Switches
Quantity:
In stock

Linear Typing Feel

The Oil King switch is the newest mechanical linear switch that features a Nylon PA66 upper housing, a housing base made of secret black Ink housing material, and a POM stem. The stem in the upper housing is fantastic with ultra-stability and almost no wobbliness. Compared to CJs, it has a deeper patch sound.

Inside Gateron Oil King Switch

Gold Contact

The gold contact improves anti-oxidation performance and protects the key switch from corrosion, guaranteeing the switch will last for up to 60 million cycles.

Gold Contact

The gold contact improves anti-oxidation performance and protects the key switch from corrosion, guaranteeing the switch will last for up to 60 million cycles.

Inside Gateron Oil King Switch

Black Plated Spring

The Oil King switch incorporates a long 20mm black plated spring allowing for 55g actuation and 80g bottom-out weight, creating a rather unique and super-smooth typing feeling.

Black Plated Spring
Gateron Oil King Switch

Factory Pre-Lubed

It is pre-lubed in the factory to help avoid spring ping and unnecessary friction and hitches.

Auto Lubed

It is auto lubed in the factory to help avoid spring ping and unnecessary friction and hitches.

Gateron Oil King Switch

New Upgrade

The pin is upgraded to 3.0 Pin with a 0.3-0.33 mm three-ply chunky design for a more reliable connection and a longer life span. The stronger pin allows for less damage and deformities and makes it easier to hot-swap.

three-ply-pin.jpg__PID:bdf68055-7cf9-486d-a7f4-3b94e8356db1

Product Information

Oil King Switch

TypeLinear
Operation Force55±5 gf
Pre-Travel2.0±0.6 mm
Total Travel4.0 mm Max.
Spring 20 mm
Sound LevelLow
Operation LifeUp to 60M cycles
Suitable ForGaming/Office
Finger Strike FeelingVertical, strong pressing force, hard rebound
Gateron Oil King Switch Force Travel Diagram

Specs

Product NameGateron Oil King Linear Switch
StemPOM, MX stem
Upper HousingNylon PA66
Housing BaseProprietary "INK" blend
SpringSpring steel
Pins5-Pin switch
LubricationLubed version
SMD LED SupportYes (only support unraised SMD-LED)
Spec SheetDownload PDF

Compatible Keyboards

Compatible with 5-Pin MX mechanical (hot-swappable) keyboards with 2-Pin LED/4-Pin LED, or RGB-SMD lights that are not raised.

Gateron Oil King Switch Layout of PCB

Notice: Due to the housing design of the Gateron Oil King switches, the backlight effect will not be that visible.

Product Gallery

Gateron Oil King Switch
Gateron Oil King Switch
Gateron-Oil-King-Switches.jpg__PID:6de7f43b-94e8-456d-b1d3-55e9f4696b93
