Gateron Baby Racoon Linear Switch Set

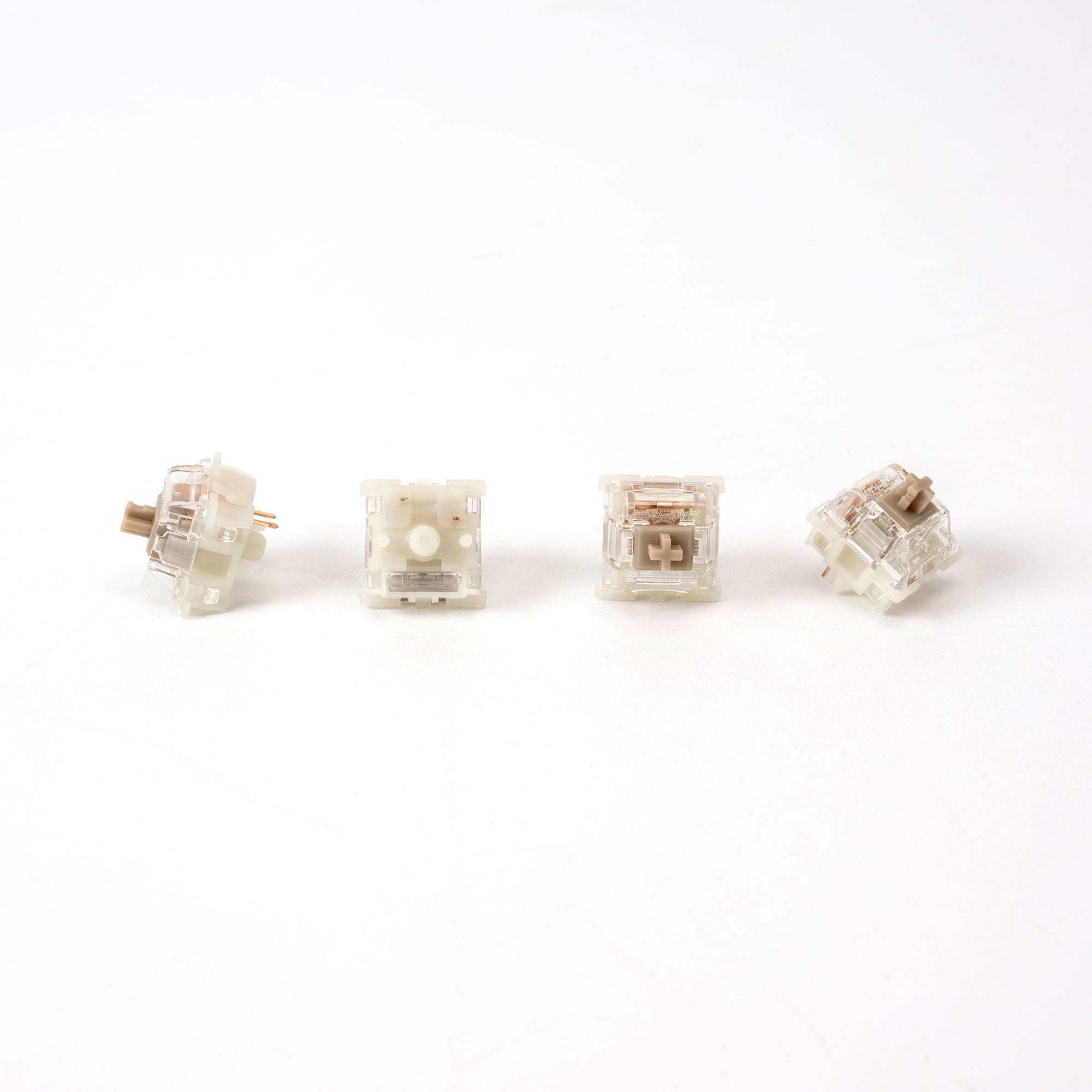

Gateron Baby Racoon Linear Switch

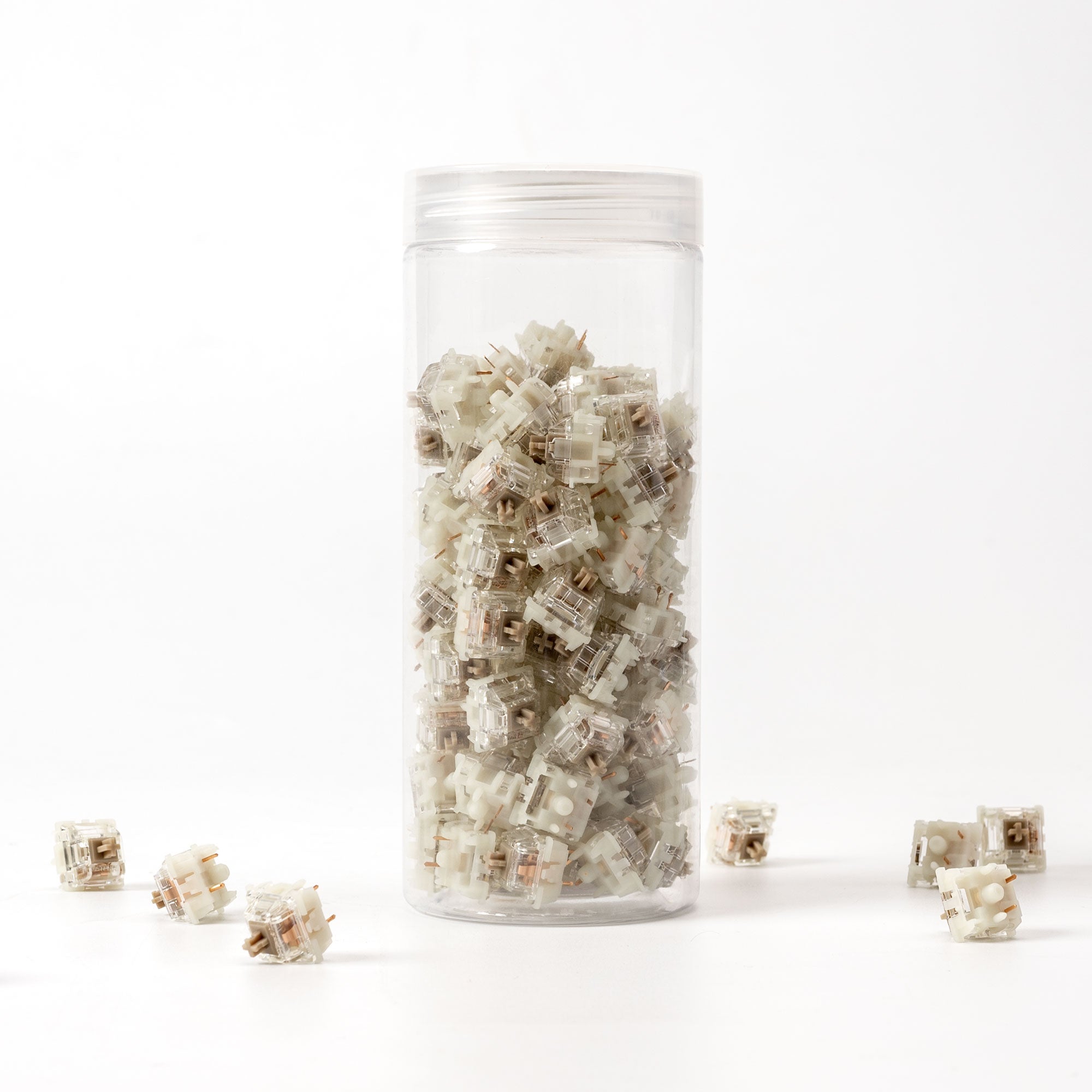

Gateron Baby Raccoon Linear Switch Set

Sale price$66.00
Option:Baby Raccoon
Quantity of one set:110 Switches
Quantity:
In stock

Shorten Total Travel And Early Bottom-out

The Gateron Baby Raccoon Switch is a linear switch that features a 0.64mm stem, which is longer than conventional switches and shortens the total travel to 3.6±0.2 mm for an early bottom-out feel. Taking into account the feel and sound, it also makes the pressing sound more concentrated and delivers a smooth and extraordinary typing experience.

Inside Garteron Baby Kangaroo switch

Extended Gold-Plated Spring

The Baby Raccoon Switch uses a 20mm extended gold-plated spring to not only enforce the switch’s high durability but also provide an operation pressure of 55gf, which is ideal for office and gaming use.

Extended Gold-Plated Spring

The Baby Raccoon Switch uses a 20mm extended gold-plated spring to not only enforce the switch’s high durability but also provide an operation pressure of 55gf, which is ideal for office and gaming use.

Inside Gateron Baby Raccoon Linear Switch

2.0 Condenser Light Hole Scheme

It incorporates the G Pro 2.0 switch's condenser light hole and light guide column design to make the light more concentrated, perfect for displaying RGB lighting. It is compatible with SMD-LED and more than 99% of keycaps on the market.

2.0 Condenser Light Hole Scheme
Plain And Elegant Apperance Design

Plain And Elegant Appearance Design

The Baby Raccoon Switch still takes the "true color" route. The upper housing and base are of natural raw material color and the stem is a light coffee color to reference the hair of the little raccoon, which brings an intriguing visual experience..

Plain And Elegant Appearance Design

The Baby Raccoon Switch still takes the "true color" route. The upper housing and base are of natural raw material color and the stem is a light coffee color to reference the hair of the little raccoon, which brings an intriguing visual experience.

Product Information

Baby Raccoon Switch

TypeLinear
Operation Force55±8 gf
Pre-Travel2.0±0.5 mm
Total Travel3.6±0.2 mm
Sound LevelLow
Operation LifeUp to 80M cycles
Suitable ForGaming/ Office
Finger Strike FeelingVertical, strong pressing force, hard rebound
Gateron Baby Kangaroo Tactile Switch Force Travel Diagram

Specs

Product NameGateron Baby Raccoon Linear Switch
StemPOM, MX stem
Upper HousingPC, transparent housing
Housing Base
Nylon PA66, milky base
Spring20 mm gold-plated
Pins5-Pin switch
LubricationLubed version
SMD LED SupportYes
Spec SheetDownload PDF

PS: SMD is an acronym for Surface Mounted Device. Their LEDs are attached to a rectangular printed circuit board (PCB). These LED chips can come in a variety of shapes and sizes that can produce different light intensities and colors.

Compatible Keyboards

Compatible with most 5-Pin MX mechanical keyboards with SMD-LED or RGB-LED light.

Gateron Baby Kangaroo Tactile SwitchLayout of PCB
