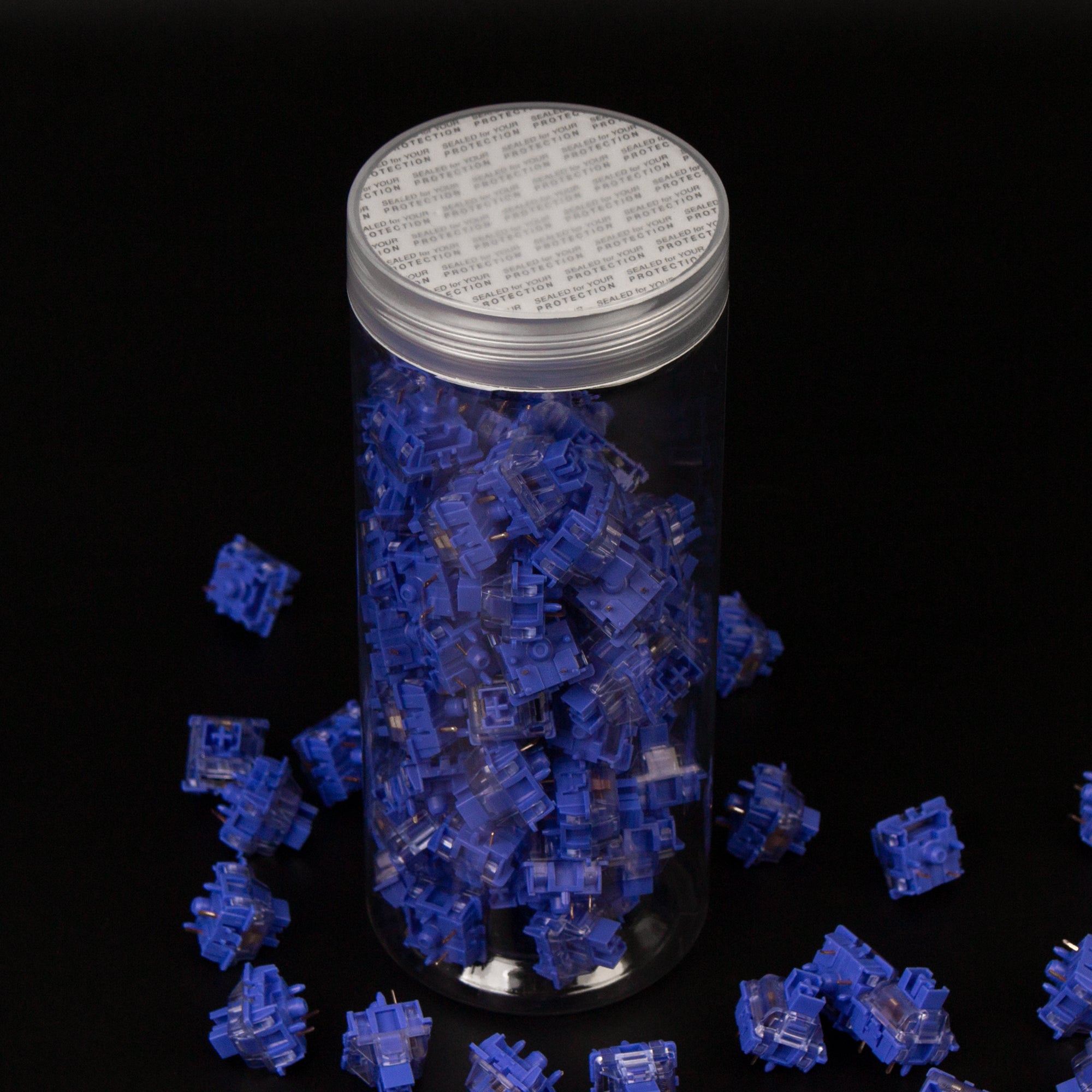

Gateron Box CJ Linear Switch Set

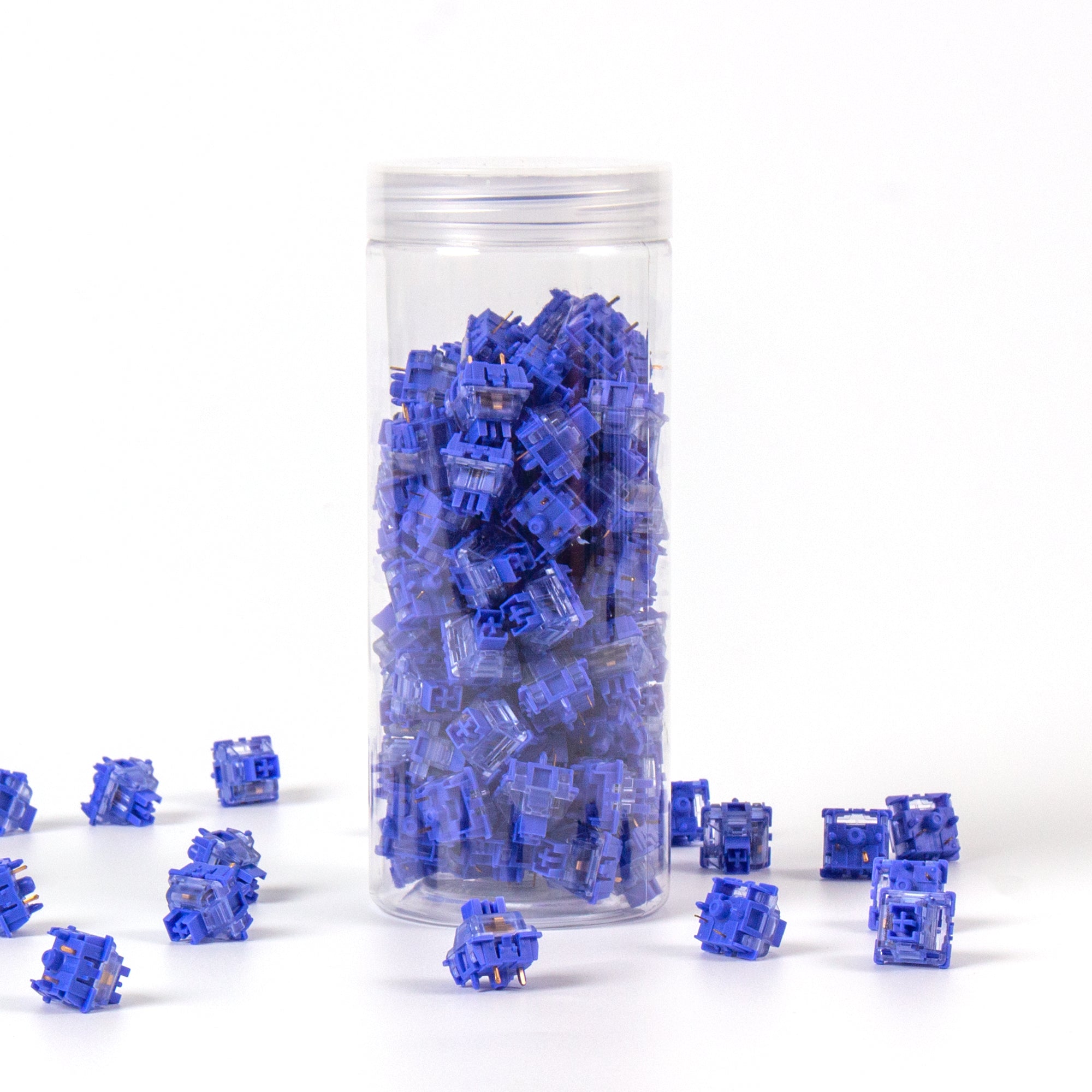

Gateron Box CJ Linear Switch Set

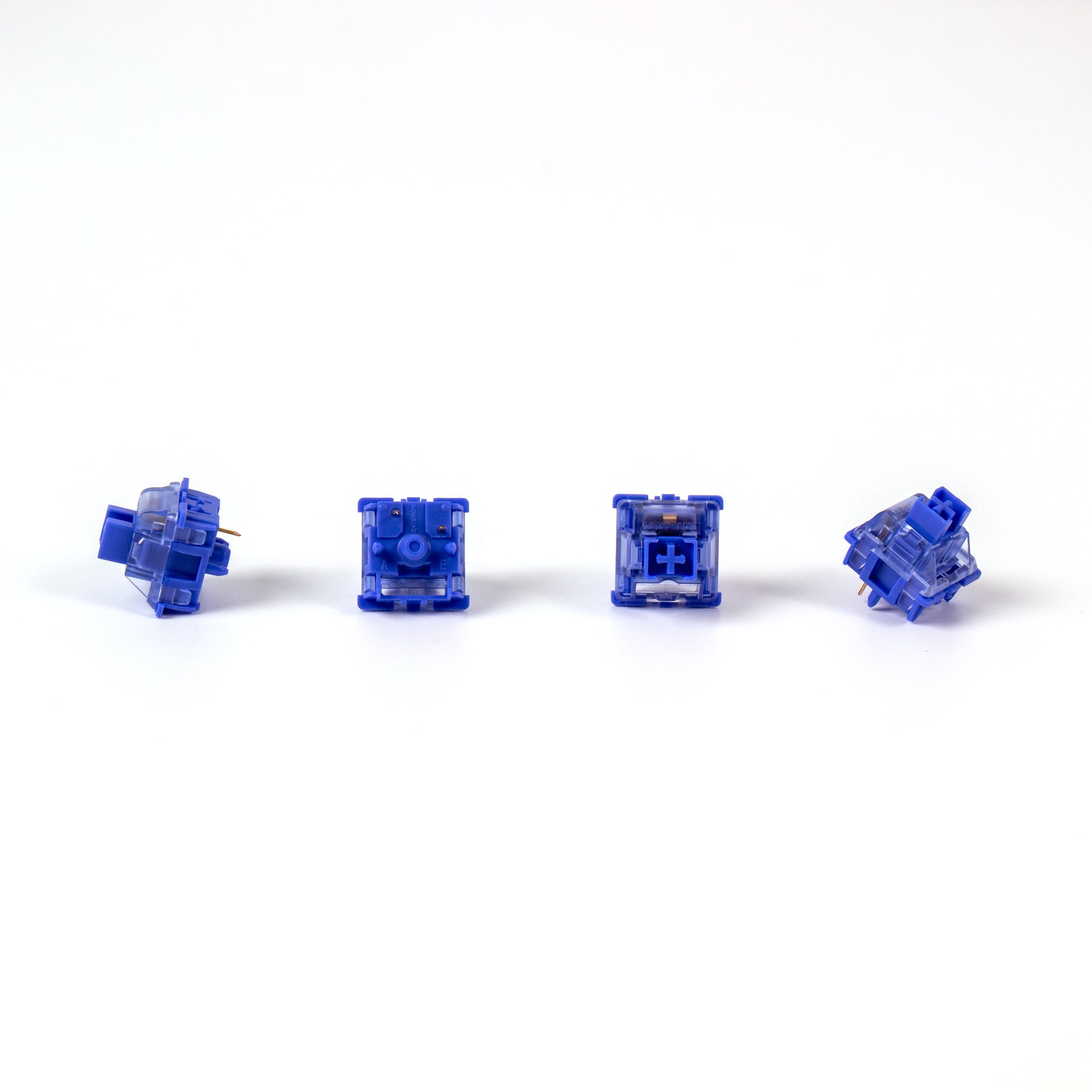

Gateron Box CJ Linear Switch(China Joy)

Gateron Box CJ Linear Switch Set

Sale price$66.00
Option:Dark Blue
Quantity of one set:110 Switches
Quantity:
Only 8 units left

Gateron Box CJ Switches Features

Click here to know more about gateron switches

Box CJ Switch Of POM Series

Same as the CJ switches (China Joy), the Gateron Box CJ switches also feature a blue POM plastic stem and Housing base. The difference is that the Box CJ adopts a dust-proof "wall" structure stem design to protect any contact and ensures a longer operating life for the switch.

Inside Box CJ Switch

Fast Actuation

Gold plated 22mm long spring and 45gf operation force, which yields a faster trigger and rebound for more a relaxed feel when typing. It’s good for both quick and prolonged typing in the office.

Fast Acutuation

Gold plated 22mm long spring and 45gf operation force, which yields a faster trigger and rebound for more a relaxed feel when typing. It’s good for both quick and prolonged typing in the office.

Inside Box CJ Switch

RGB-SMD Backlight

The mechanical keyboard switch is equipped with RGB-SMD lamp openings that can fit all LEDs.

Pre-lubed

All Box CJ switches are pre-lubed. They offer a very smooth, quiet, vertical pressing sensation with no clicky feel.

Pre-lubrication

All Box CJ switch is pre-lubed. Very smooth, quiet, vertical pressing sensation with no clicky feel.

Product Information

Box CJ Switch

TypeLinear
Operation Force45±15 gf
Pre-Travel1.2±0.3 mm
Total Travel3.4+0/-0.4 mm
Sound LevelMedium
Operation LifeUp to 80M cycles
Suitable ForGaming/ Office
Finger Strike FeelingVertical, light pressing force, clear rebound
GAteron Box CJ Switch Force Travel Diagram

Specs

Product NameGateron Box CJ Linear Switch
StemPOM, MX stem
Upper HousingProprietary Ink material, blue purple housing
Housing BasePOM, blue purple base
Spring22 mm spring steel
Pins5-Pin switch
LubricationLubed version
SMD LED SupportYes

Compatible Keyboards

Suitable for most 5-Pin MX mechanical keyboards with 2-Pin LED/4-Pin LED/SMD-LED or RGB-LED light.

Gateron Box CJ Switch Layout of PCB
